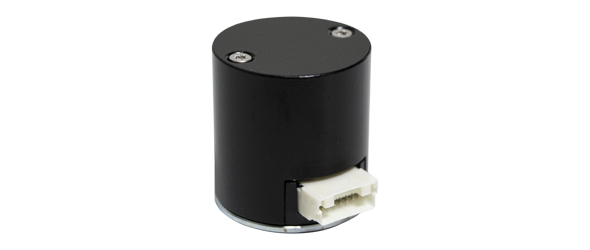

KCD-S1X3B-1617-JE4F-GRQ

Interface SSI
Fonctions manuelles Preset via cable or connector
Temps de cycle de l'interface ≥ 50 µs
Format SSI 00000000MMMMMMMMMMMMMMMMSSSSSSSSSSSSSSSSS
Diagnostic Error and Warning Bits, Register Values
Fonctions de programmation Via config pin: calibration, WIEGAND sensor test, filter selection, preset value, temperature
Remarks Version 33 or 43: µC STM32G4 or STM32F3
Pilote de sortie RS422
Raccordement BM08B-NSHSS-TBT (JST)
Données électriques
Tension d'alimentation 4.5 – 5.5 VDC
Puissance absorbée ≤ 0.7 W
Entrée d'horloge RS422
Vitesse d'horloge 300 kHz - 1 MHz
Protection en inversion de polarité Non
Protection contre les courts-circuits Non
EMC: Emission d'interférences The kit encoder is a sub-assembly and not to be considered an independent system. Therefore, compliance with CE requirements has to be ensured by the integrator for the overall set-up.
Vitesse électrique maximum admissible 12000 1/min
EMC: Immunité au bruit The kit encoder is a sub-assembly and not to be considered an independent system. Therefore, compliance with CE requirements has to be ensured by the integrator for the overall set-up.
MTTF 20 years @ 40 °C
